Radio Tower Navigation Lights

Yesterday, I received a small box of junk in priority mail.

Nav_parts Nav_box1

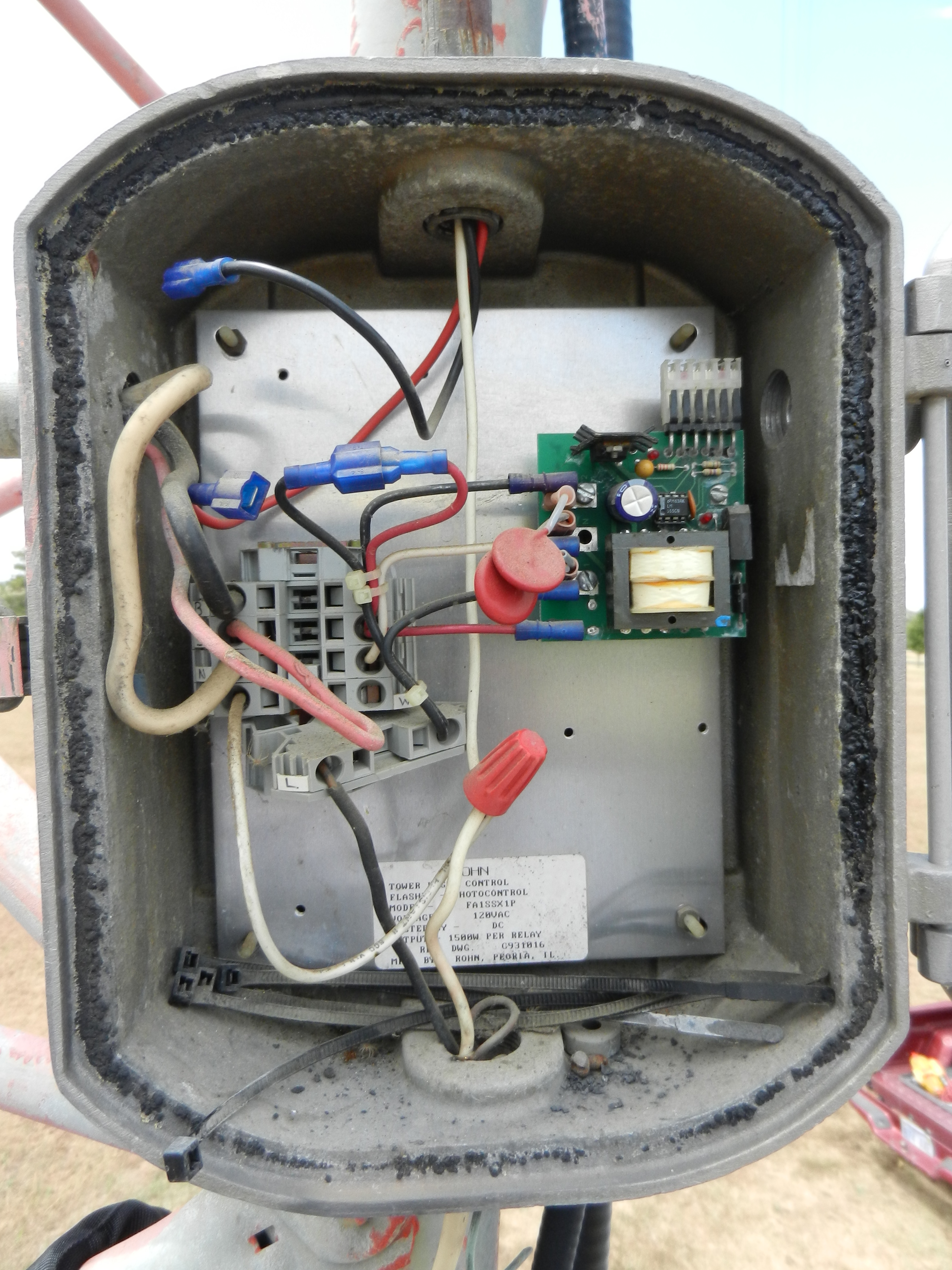

The lights weren’t working on a 400 ft. radio tower.  The controller’s enclosure was damaged and water had gotten in.

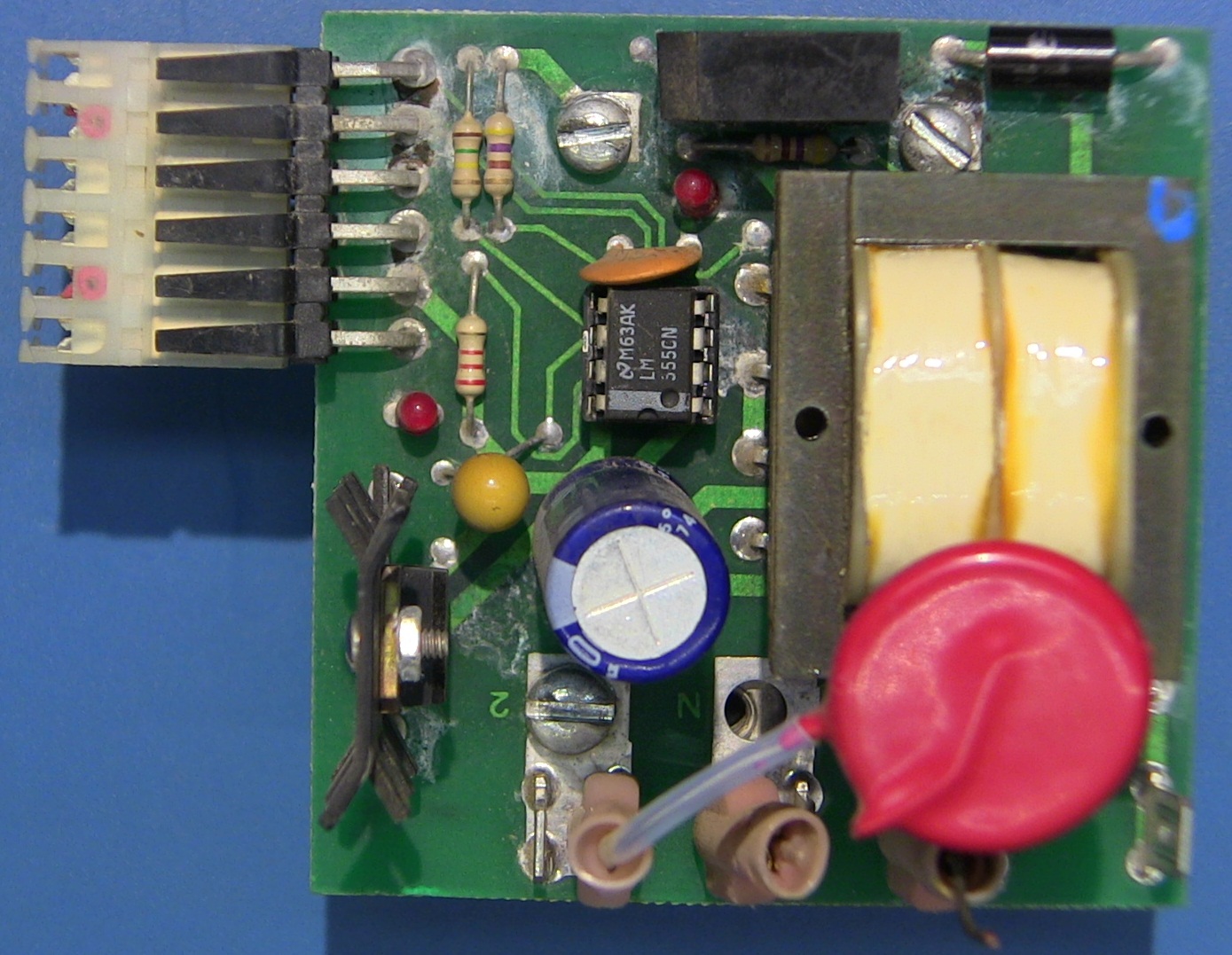

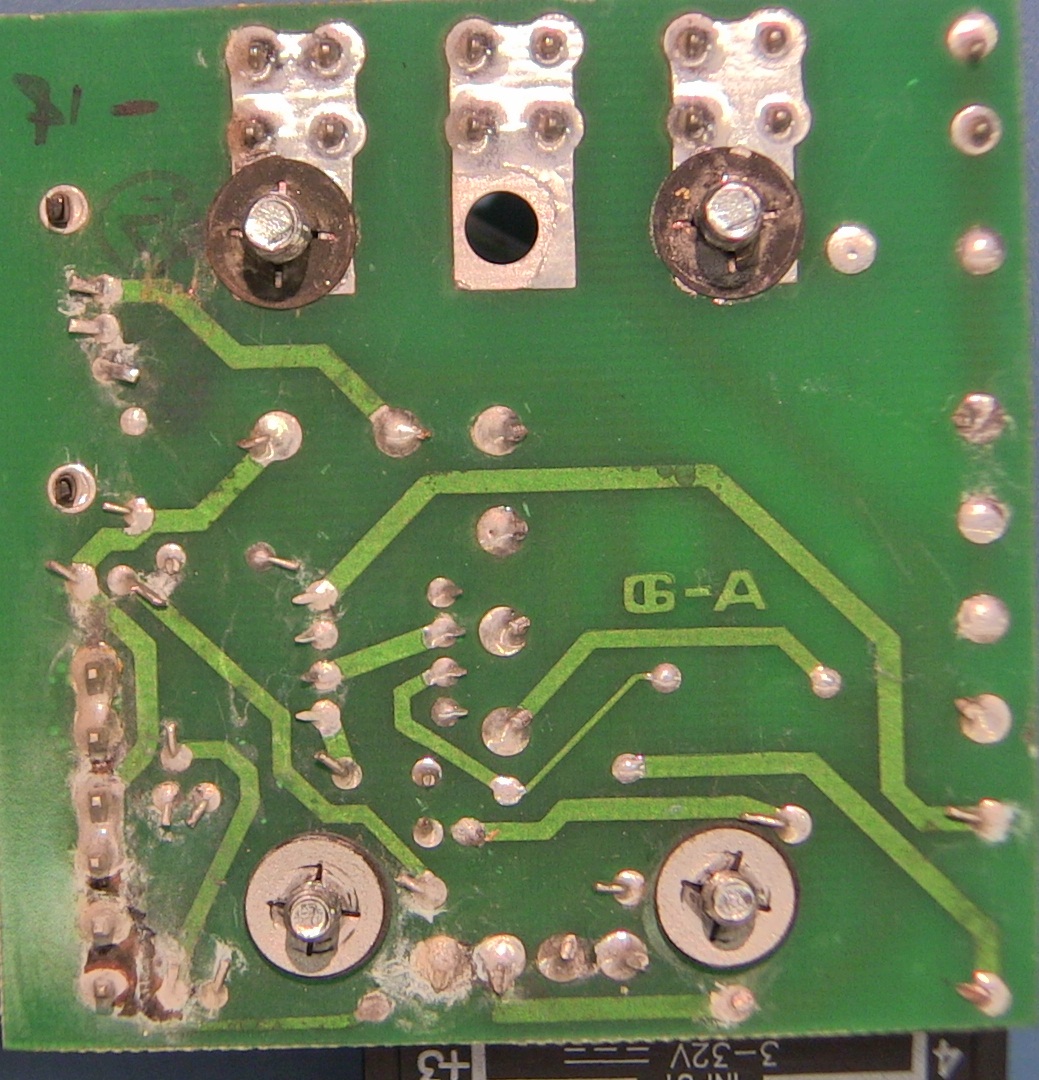

The board had a fair amount of corrosion, and also some scorch marks.

Nav_board_top1  Nav_board_bottom

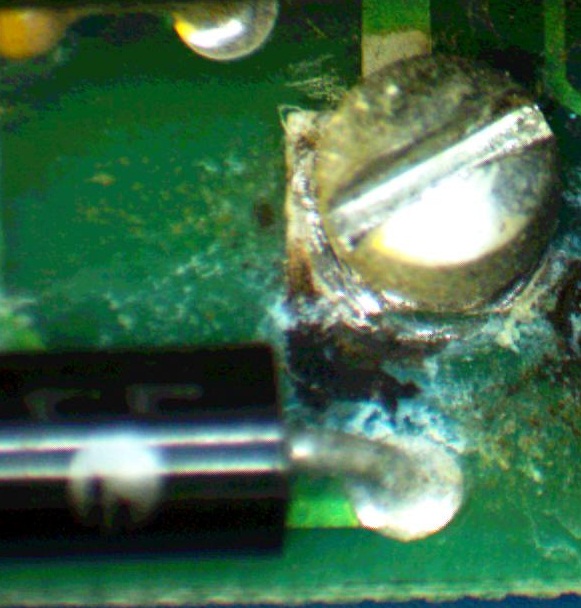

It looks like there may have been some transients from lightning, as the leads to one of the MOVs has melted.

Nav_burn1 Nav_mov1

I toned out the connections, and it matches the typical NE555 oscillation circuit.  The damage was mostly limited to the MOVs (150L20), and the TVS protection diode (1N6281C).  But, before the TVS blew, it took out a couple of traces on the board.  So,I just bodged in a couple of wires to repair the trace, and it’s all running again.
